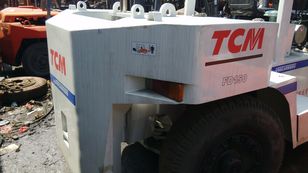

TCM FD150 gaffeltruck

PDF
Interessert i annonsen?
Kontakt selgeren
1/19
USD 45 000
Nettopris
≈ € 40 519
≈ kr 415 267
USD 52 650
Pris med moms
Kontakt selgeren
Merke TCM
Modell FD150
Type gaffeltruck
Produksjonsår 2011
Første registrering 2013
Kjøretimer 3500 m/t
Lastekapasitet 150000 kg
Totalvekt 375000 kg
Sted Kina Shanghai, Jiuting
Dato oppført mer enn 1 måned
Autoline ID UR16123
PDF
Beskrivelse
Type mast standard
Løftehøyde 4000 m
Lengde på gaffel 1.5 m
Bredde på gafler 2 mm
Hastighet 34 km/t
Nettovekt 225000 kg
Totale mål 7.1 m × 2.9 m × 3.1 m
Motor
Merke Isuzu 6BG1T
Effekt 175 hk (128 kW)
Drivstoff diesel
Euro Euro 4
Trenger du levering? Beregn fraktkostnaden til ditt land
Stand
Stand brukt
Teknisk inspeksjon gyldig til 2018
Beskrivelse
Farge gul
Mer informasjon: Engelsk
15 ton tcm diesel forklift for sale
Japan original
location in Shanghai China
welcome to check and buy
Selected Dimensions
Dimensions
A. LENGTH TO FORK FACE 23.5 ft in 7165 mm
B. OVERALL WIDTH 9.7 ft in 2970 mm
C. OVERALL HEIGHT - MAST LOWERED 10.8 ft in 3290 mm
D. WHEELBASE 12 ft in 3650 mm
E. GROUND CLEARANCE 11.6 in 295 mm
F. HEIGHT TO TOP OF OVERHEAD GUARD 10.5 ft in 3200 mm
G. MAX FORK HEIGHT 9.8 ft in 3000 mm
MAST
H. MAST TIP FORWARD 6 degrees
I. MAST TIP REAR 12 degrees
Specification
Engine
MAKE 2353
MODEL 6BG1T
POWER 172 hp 128.3 kw
TORQUE 457.3 lb ft 620 Nm
POWER MEASURED @ 2200 rpm
DISPLACEMENT 396.3 cu in 6.5 L
TORQUE MEASURED @ 1800 rpm
FUEL TYPE diesel
Operational
OPERATING WEIGHT 496260.5 lb 225100 kg
TIRE TYPE Solid tire
NUMBER OF FRONT WHEELS 2
NUMBER OF REAR WHEELS 2
MAX SPEED 21.1 mph 34 km/h
MAST
LOAD CAPACITY 35274 lb 16000 kg
LOAD CENTER 36 in 914.4 mm
MAST TIP FORWARD 6 degrees
MAST TIP REAR 12 degrees
LIFT SPEED 64.9 ft/min 19.8 m/min
Dimensions
WHEELBASE 12 ft in 3650 mm
LENGTH TO FORK FACE 23.5 ft in 7165 mm
OVERALL WIDTH 9.7 ft in 2970 mm
OVERALL HEIGHT - MAST LOWERED 10.8 ft in 3290 mm
MAX FORK HEIGHT 9.8 ft in 3000 mm
TURNING RADIUS 16.4 ft in 5000 mm
HEIGHT TO TOP OF OVERHEAD GUARD 10.5 ft in 3200 mm
GROUND CLEARANCE 11.6 in 295 mm

Phone/WhatsApp/Viber/IMO/Line/wechat: +86 15202117835
for more details and information timely & directly.
Company website:www.usedky.com
Company mail address:abc@kyused.com

As the major used construction machinery in shanghai,SHANGHAI KAIYING TRADING CO.,LIMITED provides various kinds of used construction machinery&vehicles with good working condition&reasonable price.we do our best to provide you various kinds of bulldozers,excavators,cranes,loaders,backhoe loaders,forklifts,rollers motor graders,trucks,vehicles...of famous brands like Caterpillar,Komatsu.Kobelco,Kawasaki,TADANO,KATO,HITACHI,BOMAG,GROVE and so on...all our machines are in excellent working condition&ready to work anytime.we also provide Nice service and Maintenance.

We warmly welcome you(or your friends in China)to come to our big yards to check the machines and test the working condition any time properly.
1) High Quality&Good Price, 100% good working condition, various options
2) Strong Mechanical Team, all machines are well serviced and regularly maintained.

Additional service as follows:
1) Help you book the comfortable and nice hotel
2) Pick you up in the airport once you arrive
3) Help you check and pick good machines
4) Professional freight agents will arrange all well for you
5) Show you shanghai around and have a nice time
6) Be one of your friends&partners in shanghai

We are looking forward to long-term cooperation&communication with you
